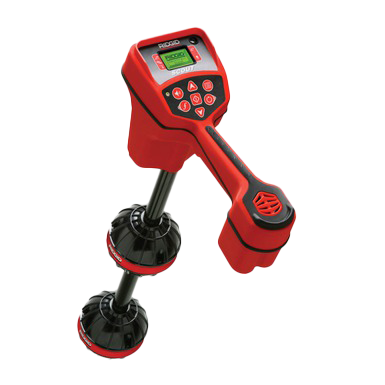

RIDGID 19238 NaviTrack Scout® Locator

RIDGID 19238 NaviTrack Scout® Locator

RIDGID 19238 NaviTrack Scout® Locator

The NaviTrack Scout® Locator is designed to solve the most demanding remote transmitter (sonde) locates using multi-directional locating technology.

The NaviTrack Scout Locator is designed to solve the most demanding remote transmitter (sonde) locates using multi-directional locating technology. The NaviTrack Scout multi-directional antenna technology sees the entire signal all of the time. Simply maximize the signal strength and you have found the target. No nulls or false peaks to complicate the locate. Depth is automatically calculated and displayed when over the target.

The NaviTrack Scout® multi-directional antenna technology sees the entire signal all of the time. Simply maximize the signal strength and you have found the target. No nulls or false peaks to complicate the locate.

Accuracy

This locator verifies the locate position using a micro-mapping display to mark distinctive poles in front of and behind the target, insuring an accurate locate.

Automatic Depth

Depth is automatically calculated and displayed when over the target.

Weight 3 lbs (1.4 kg).
Power Source 4 C-Cell batteries or Rechargeable RIDGID® Professional 18V battery with RIDGID® SeekTech® 18V Adaptor (optional).
Battery Life Varies with battery rating, use and operating factors. Four size C, alkaline batteries provide approximately 12 to 24 hours.



Standard Frequencies

Sonde 16 Hz, 512 Hz, 640 Hz, 874 kHz and 33 kHz.
Line Trace 128 Hz, 1 kHz, 8 kHz and 33 kHz.
Passive AC Line Trace 60 Hz, 50 Hz.
Meets FCC Class B and EN 55022 Class B requirements.


Ridgid 19238 Includes

  •   Hard Carrying Case
  •   Surface Markers and Clip
  •   Instructional Video
  •   Operator's Manual
  •   4 C-Cell Batteries


Ridgid 19238 Features

  •  Multi-directional antenna and easy to read display make locating cameras and remote transmitters fast, easy and accurate.
  •  Walk Directly to the Target Scout allows you to walk to the target by maximizing signal strength
  •  The nulls and false peaks that make other locators difficult and time consuming have been eliminated.
  •  Easy To Read Display Digital signal strength and mapping display confirm location of target.
  •  Battery strength and frequency selection are also displayed.
  •  Automatic Depth Automatically calculates depth when over the target.
  •  The well-balanced Scout weighs only 3 pounds.
