Sku: 52283

RIDGID 52283 4P-6 4PIN Dieless Crimp Head Only

RIDGID 52283 4P-6 4PIN Dieless Crimp Head Only      The RIDGID 4P-6 (52283) 4PIN Dieless Crimp Head is designed to crimp electrical compression connectors to their respective wires. The interchangeable head is...

IN STOCK

Please call (734) 525-4225 to check dates for availability. The status for back ordered items change often - item may already be back in stock.
$1,998.99
$2,270.95
SAVE {price} BACK ORDER

Features

Shipping

Return Policies

RIDGID 52283 4P-6 4PIN Dieless Crimp Head Only

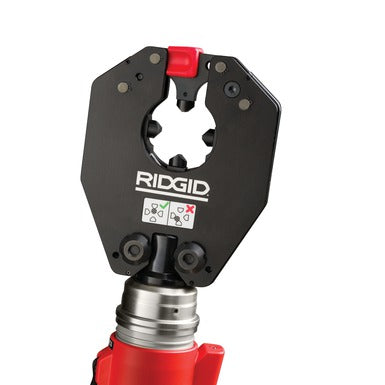

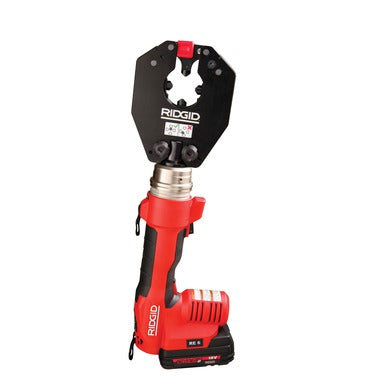

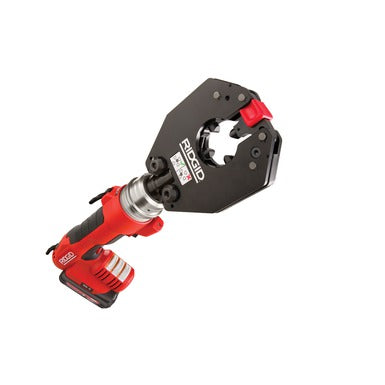

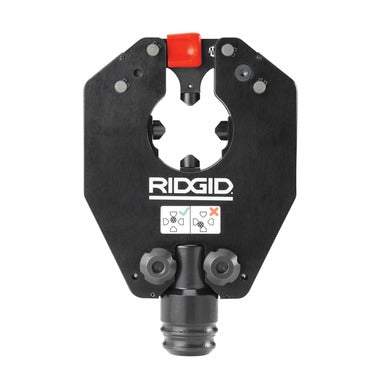

The RIDGID 4P-6 (52283) 4PIN Dieless Crimp Head is designed to crimp electrical compression connectors to their respective wires. The interchangeable head is designed for use with the RE 6 Electrical Tool (sold separately).

The 4PIN Dieless Crimp Head is classified to UL 1976 for copper connectors and wire from #8AWG to 750 kcmil (MCM) and aluminum connectors and wire from #8AWG to 500 kcmil (MCM). The crimp head can rotate 360 degrees and includes a special quick-acting latching system.

The 4P-6 4PIN Die-less Crimp Head, designed for die-less crimping of all common standard copper lugs, is compatible with the exclusive QuickChange™ system, delivers unparalleled efficiency to contractors and electricians.

RIDGID 52283 Features:

  • Crimps up to 400 mm² standard copper lugs without crimping dies
  • One Crimp Head without dies for all common standard Cu lug sizes; no hassle of changing crimping dies, faster operations.
  • Slim, ergonomic latching system allows tool to access tighter spaces.
  • 360° head rotation increases maneuverability.
  • No need for (continuous) investment in expensive crimping dies thanks to the die-less crimping system.

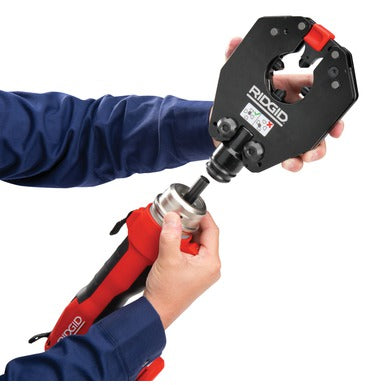

  • Combine with other heads in the RIDGID QuickChange System to maximize efficiency and productivity on the job site.
  • Classified to UL 1976 for copper connectors and wire from #8AWG to 750 kcmil (MCM), and aluminum connectors and wire from #8AWG to 500 kcmil (MCM)
  • Approximate Crimp Time: 5 seconds
  • QCS Coupling Type: 6T QCS and 60kN QCS
  • Tool Input Force: 60kN (6-ton) (13,500 lbs)
  • Interchangeable Head Weight: 5.8 lb (2.6 kg)





RIDGID 52283 Specifications:

Crimps 10 mm2 to 400 mm2 standard copper lugs.
Interchangeable head is compatible with 60 kN RE 60 Electrical Tool featuring the RIDGID QuickChange System.
Approximate Crimp Time 5 seconds
