Sku: 0904101

Hougen 0904101 HMD904 Magnetic Drill 115V

Hougen 0904101 HMD904 Magnetic Drill 115V   Hougen's HMD904 Portable Mag Drill is extremely lightweight and powerful, making it the drill of choice for fabrication. The HMD904 drills holes up to 2-1/2" in...

IN STOCK

$1,107.00
$1,359.99
*Select shipping or pickup at checkout

Local Pickup

Start-EComposer-custom-liquid-pickup

Pickup at McCally Tool - Livonia Store.

Usually ready in 4 hours

Hougen 0904101 HMD904 Magnetic Drill 115V

  • McCally Tool - Livonia Store

    Pickup, usually ready in 4 hours

    34417 Industrial Rd
    Livonia MI 48150
    United States

    +17345254225

End-EComposer-custom-liquid-pickup

Ship to you

Order within [hour] to get it between [date_start] - [date_end]

Features

Shipping

Return Policies

Hougen 0904101 HMD904 Magnetic Drill 115V

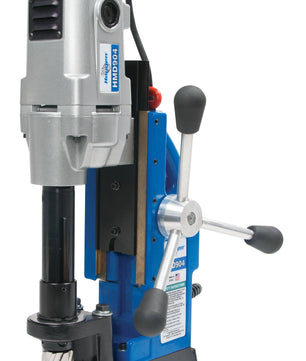

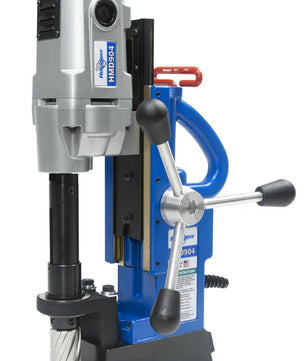

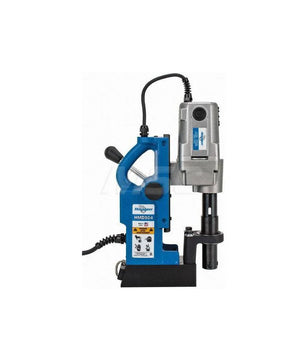

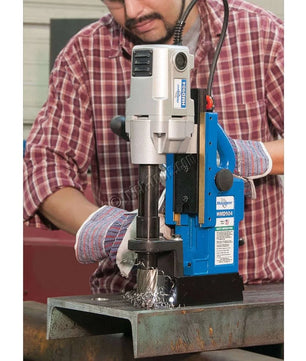

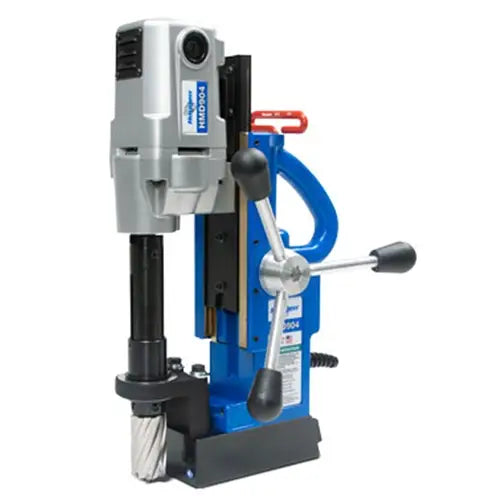

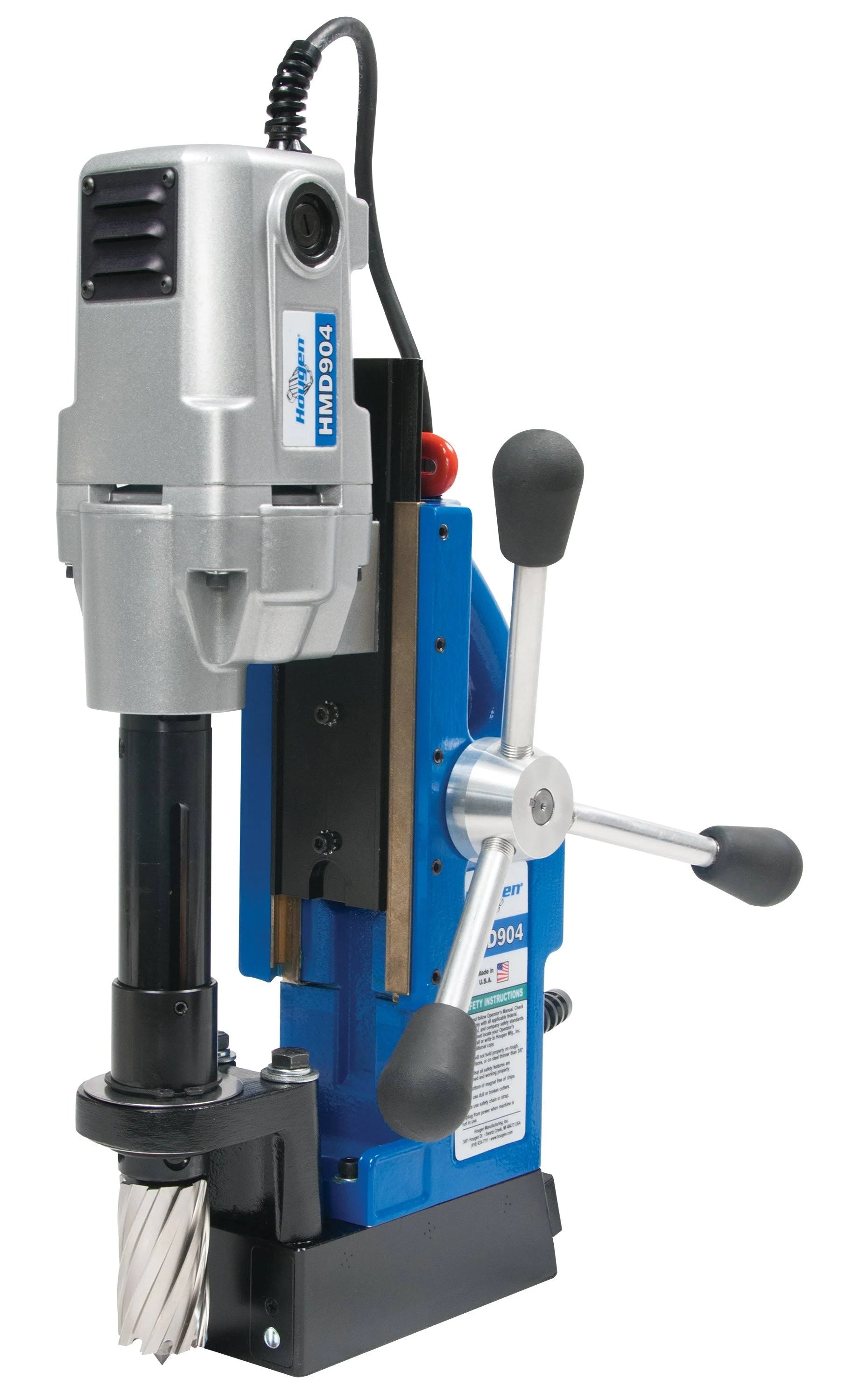

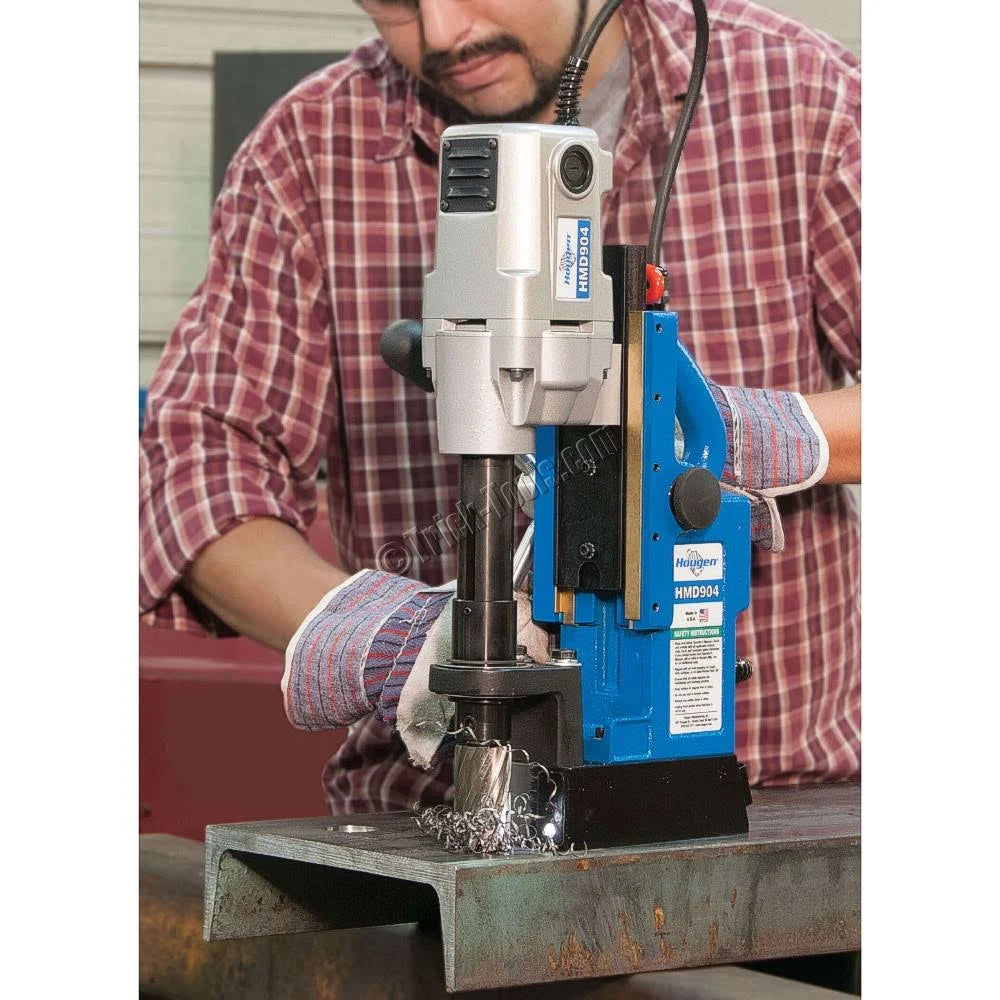

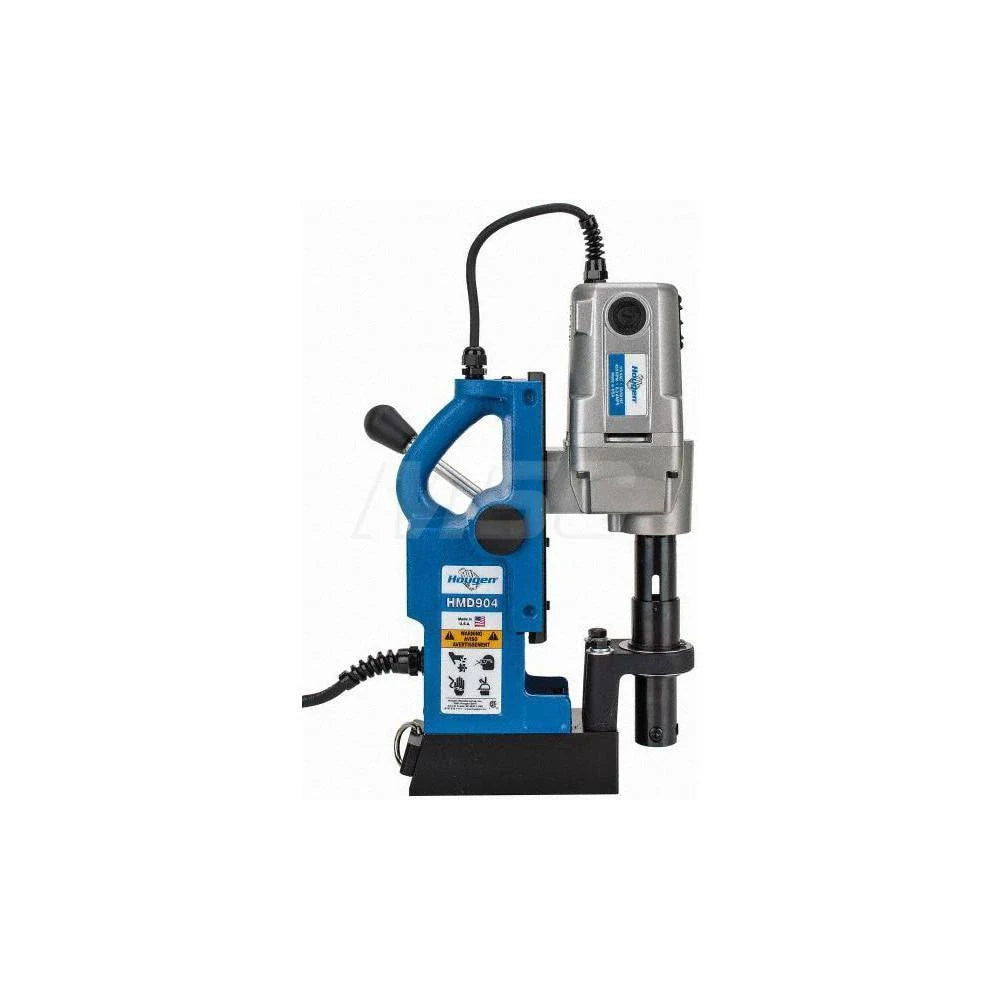

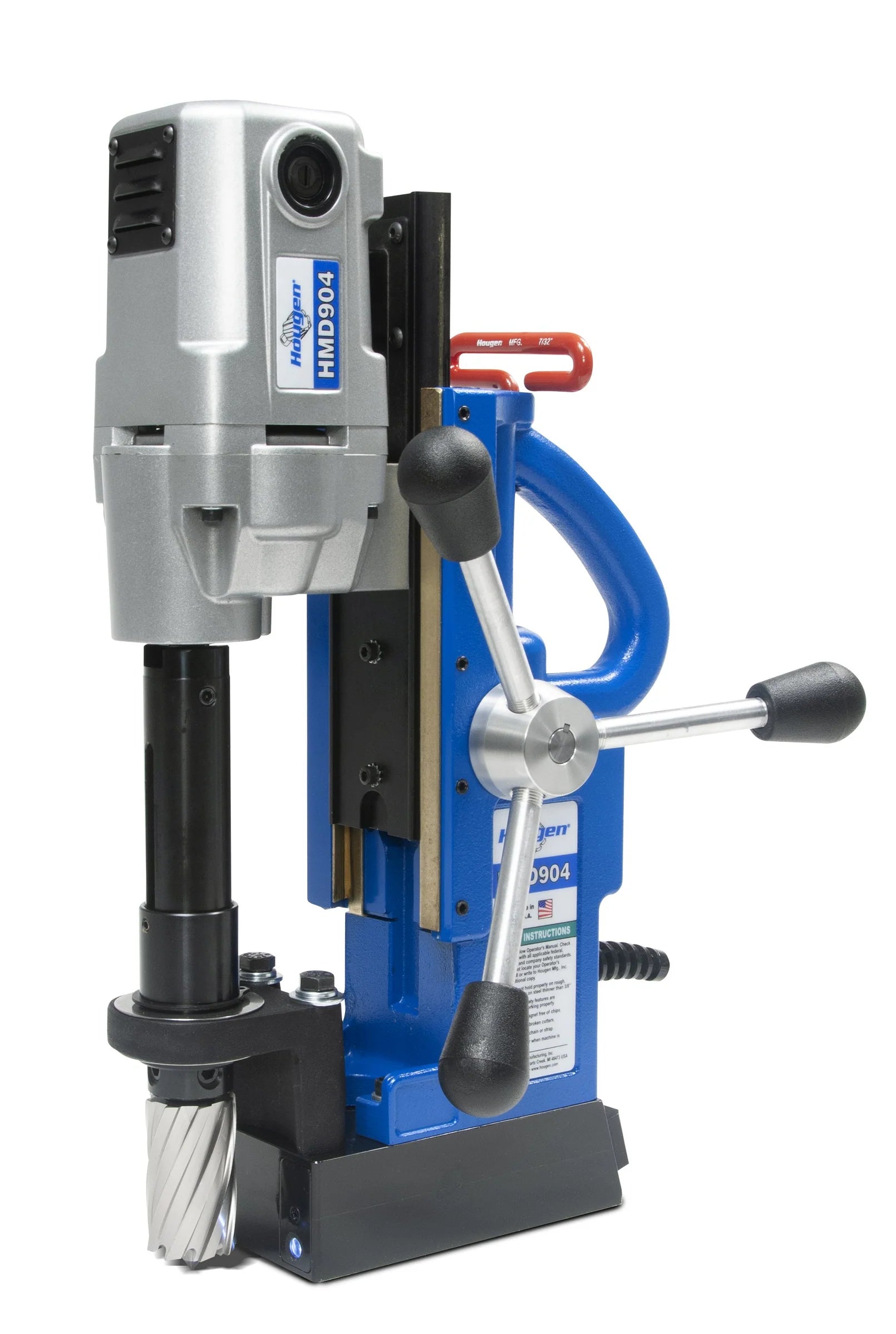

Hougen's HMD904 Portable Mag Drill is extremely lightweight and powerful, making it the drill of choice for fabrication. The HMD904 drills holes up to 2-1/2" in diameter and 2" deep. Hougen Drills are made for durability, and come complete with a carrying case and one year warranty. Use this magnetic drill with Hougen Annular Cutters and Hougen Cutting Fluid.

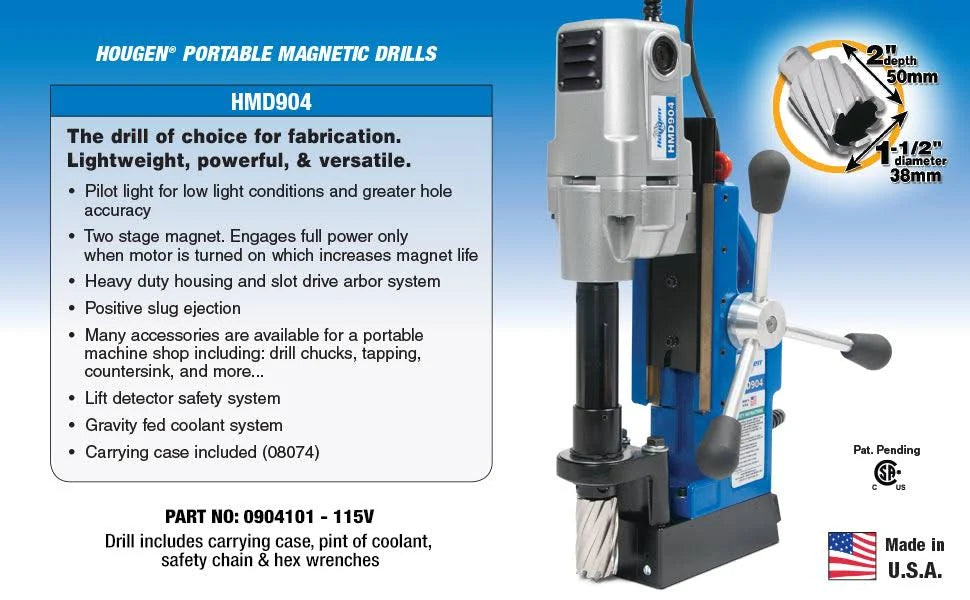

Features:

  • Large 1-1/2" x 2" capacity.
  • Hidden motor cord.
  • Ergonomic housing
  • Increased safety with less maintenance.
  • New Height - 1-5/8" shorter.
  • Pilot Light.
  • Two stage magnet - 30% power increase when motor is turned on.
  • Positive slug ejection.
  • Slot Drive arbor for more accuracy and quicker change out of accessories.
  • Many accessories are available for a portable machine shop including: drill chucks, tapping, countersink, and more...
  • Feed handles quickly change from side to side.
  • Lift detector safety system.
  • Rear mounted controls.
  • Gravity feed coolant system (HMD904 w/ coolant bottle).

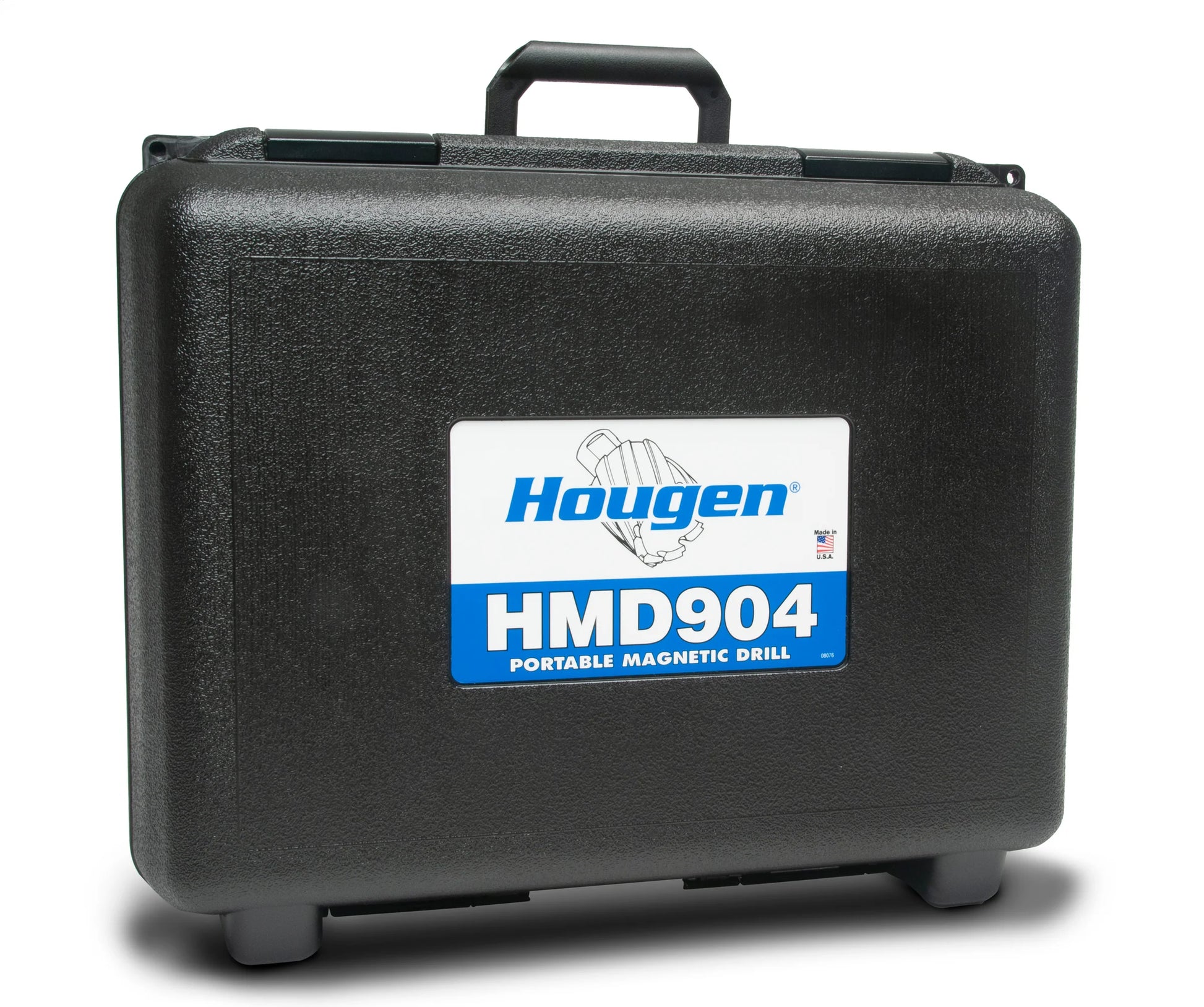

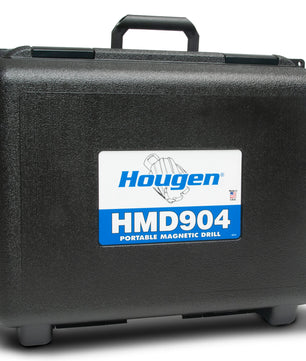

  • Carrying case included (09202).
  • Two year warranty.



Specs:

AMPS: 9 Amps
Width: 7-3/4"
Cutter: 3/4" Shank
Depth: 2"
Diameter: 7/16" - 1-1/2" (12mm - 38mm)
Height (Generic): 18"
Length: 11-5/8"
Manufacturer: Hougen
Tool Style: Bare Tools (No Battery)
Voltage: 115V
Warranty?: 1 Year
Weight: 43.09

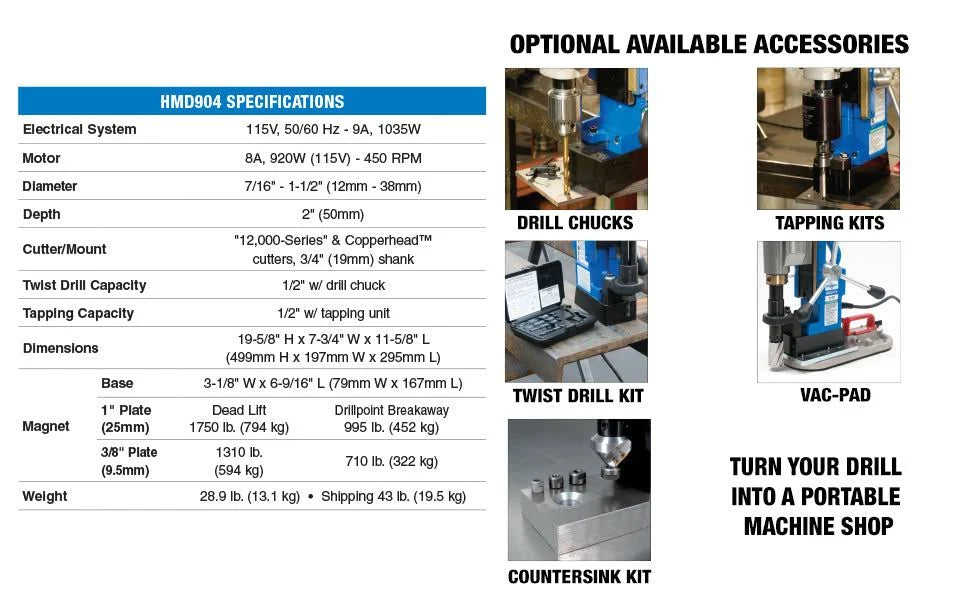

Electrical System

115V, 50/60 Hz - 9A, 1035W

230V, 50/60 Hz - 4.5A, 1035W

Motor 8A (115V), 4 (230V), 450 RPM
Diameter 7/16"- 1-1/2" (12mm - 38mm)
Depth 2" (50mm)
Cutter/Mount "12,000-Series" & Copperhead Carbide cutters, 3/4" shank
Dimensions

18" H x 7-3/4" W x 11-5/8" L

(457mm H x 197mm W x 295mm L)

Magnet

Base: 3-1/8" W x 6-9/16" L (79mm W x 167mm L)

1" Plate (25mm): Dead Lift 1750 lb. (794 kg) / Drillpoint Breakaway 995 lb. (452 kg)

3/8" Plate (9.5mm): 1310 lb. (594 kg) / 710 lb. (322 kg)

Weight 30 lb. (13.6 kg) • Shipping 44.1 lb (20 kg)
Shipping Dimensions 18" x 20" x 9" (45.72 x 50.8 x 22.9 cm)
