Sku: EK628LX11

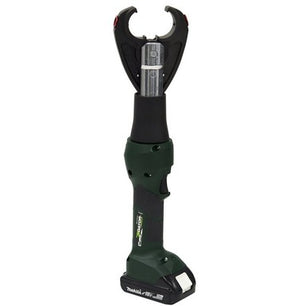

Greenlee EK628LX11 6 Ton Crimper

Greenlee EK628LX11 6 Ton Crimper   6 Ton Crimper, Li-Ion, Standard, 120V Equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app. Features LED display screen communicating pressure and battery levels as...

IN STOCK

$2,301.00
SAVE {price}
*Select shipping or pickup at checkout

Local Pickup

Start-EComposer-custom-liquid-pickup

Pickup at McCally Tool - Livonia Store.

Usually ready in 4 hours

Greenlee EK628LX11 6 Ton Crimper

  • McCally Tool - Livonia Store

    Pickup, usually ready in 4 hours

    34417 Industrial Rd
    Livonia MI 48150
    United States

    +17345254225

End-EComposer-custom-liquid-pickup

Ship to you

Order within [hour] to get it between [date_start] - [date_end]

Features

Shipping

Return Policies

Greenlee EK628LX11 6 Ton Crimper



6 Ton Crimper, Li-Ion, Standard, 120V

  • Equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app. Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback.Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications State of the art 18V lithium ion (Li-ion) battery provides 70% more cycles per charge and faster cycle times LED light provides the operator with the battery charge and tool maintenance status In Line tool style is light weight and very easy to control One trigger controls all tool functions Crimping head rotates 350° Tools automatically retract when the crimping cycle is complete Over molded tacky grip areas make gripping the tool easier and more comfortable LED work light illuminates dark work areas Greenlee battery-powered crimping tools now use bio-degradable oil Smart chargers control the charging current, charging voltage and battery temperature to maximize battery life Available with 120V, 12V or 230V battery charger or with 120V or 230V corded adapter in place of batteries and charger Equipped with CJ22 Crimping Jaws that accept Greenlee KC22 and KA22 Series Crimping Dies When equipped with optional CJD3 Crimping Jaws, can be used with all industry "W" Style Crimping Dies & Greenlee KD6 Series Dies When equipped with optional CJK Crimping Jaws, can be used with Thomas & Betts "6-Ton" Crimping Dies
  • Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications State of the art 18V lithium ion (Li-ion) battery provides 70% more cycles per charge and faster cycle times LED light provides the operator with the battery charge and tool maintenance status In Line tool style is light weight and very easy to control One trigger controls all tool functions Crimping head rotates 350° Tools automatically retract when the crimping cycle is complete Overmolded tacky grip areas make gripping the tool easier and more comfortable LED work light illuminates dark work areas Greenlee battery-powered crimping tools now use bio-degradable oil Smart chargers control the charging current, charging voltage and battery temperature to maximize battery life Available with 120V, 12V or 230V battery charger or with 120V or 230V corded adapter in place of batteries and charger Equipped with CJ22 Crimping Jaws that accept Greenlee KC22 and KA22 Series Crimping Dies When equipped with optional CJD3 Crimping Jaws, can be used with all industry "W" Style Crimping Dies & Greenlee KD6 Series Dies When equipped with optional CJK Crimping Jaws, can be used with Thomas & Betts "6-Ton" Crimping Dies
  • Equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app. Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback.
  • Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is belows specifications State of the art 18V lithium ion (Li-ion) battery provides 70% more cycles per charge and faster cycle times LED light provides the operator with the battery charge and tool maintenance status In Line tool style is light weight and very easy to control One trigger controls all tool functions Crimping head rotates 350° Tools automatically retract when the crimping cycle is complete Overmolded tacky grip areas make gripping the tool easier and more comfortable LED work light illuminates dark work areas Greenlee battery-powered crimping tools now use bio-degradable oil Smart chargers control the charging current, charging voltage and battery temperature to maximize battery life Available with 120V, 12V or 230V battery charger or with 120V or 230V corded adapter in place of batteries and charger Equipped with CJ22 Crimping Jaws that accept Greenlee KC22 and KA22 Series Crimping Dies When equipped with optional CJD3 Crimping Jaws, can be used with all industry "W" Style Crimping Dies & Greenlee KD6 Series Dies When equipped with optional CJK Crimping Jaws, can be used with Thomas & Betts "6-Ton" Crimping Dies


Greenlee Link

Introducing Greenlee Link™, a new mobile platform that interfaces with Greenlee® tools equipped with Bluetooth technology. Registration is quick and easy and the app provides valuable real-time data on your phone or tablet. Sign up today to start working faster…and smarter..



Specifications:

Sub Brand Gator
Type Die style crimper
Application 6 Ton Crimping
Standard C/US UL Listed
Wire Size 8 AWG - 600 kcmil Cu, 8 AWG - 350 kcmil Al
Overall Length 18.5 IN (470mm)
Crimping Force 12,000 lbs. (53 kN)
Crimping Capacity 600 kcmil (MCM) Copper, 350 kcmil (MCM) Al
Connector Type Color-coded lugs and splices
Handle Type In-Line Style with over molded rubber grip
